Description

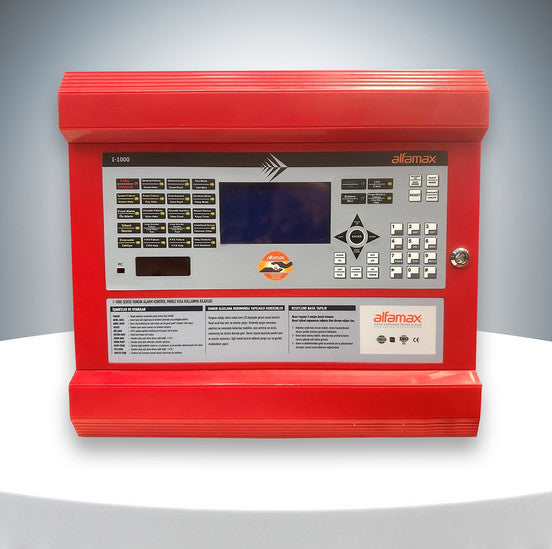

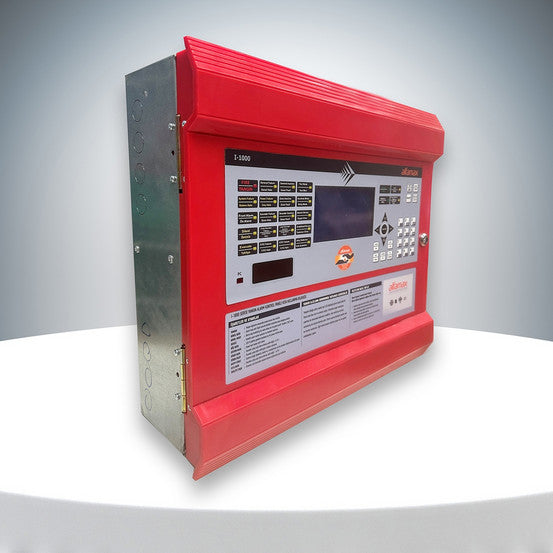

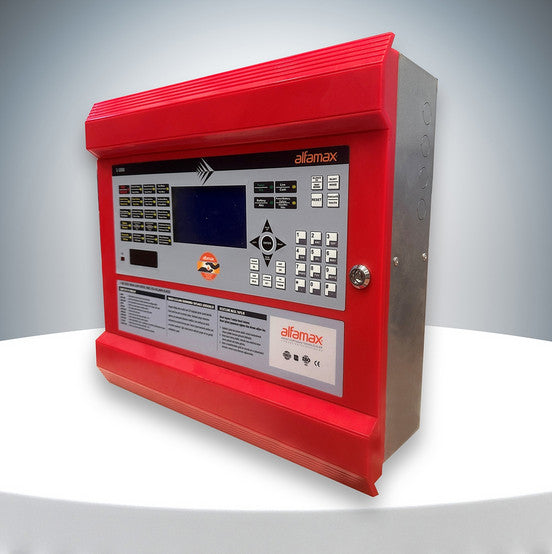

xThe Alfamax I-1000-R Repeater Panel provides real-time remote monitoring and control of your Alfamax I-1000 Series Intelligent Fire Alarm Panel.
It mirrors all key status information — including fire, fault, and supervisory conditions — making it ideal for large buildings where fire events must be displayed at multiple locations such as security rooms, reception areas, or maintenance offices.
Built for reliability, accuracy, and ease of use, the I-1000-R Repeater Panel enhances situational awareness and improves emergency response in compliance with EN 54-2 standards.
Key Features
- Full System Mirroring: Displays all alarms, faults, and system statuses from the main control panel in real time.
- RS-485 Communication: Stable and interference-free data transmission up to 1.5 km from the main panel.
- Large LCD Display: Easy-to-read multi-line screen showing device addresses and zone information.
- LED Indicators & Key Controls: Quick access to mute, reset, and evacuation functions.
- Multiple Repeaters Supported: Up to 8 repeater panels can connect to one main control panel.
- Easy Installation: Surface or flush-mount design with minimal wiring required.
- Battery Backup Support: Maintains visibility during power outages.
- Rugged Enclosure: Designed for Ghana’s environmental conditions (heat, humidity, and dust).
Technical Specifications
| Parameter | Description |
|---|---|
| Model | Alfamax I-1000-R |
| Display | LCD, multi-line text |
| Communication Port | RS-485 |
| Distance to Main Panel | Up to 1.5 km |
| Operating Voltage | 24 V DC (from main or auxiliary PSU) |
| Indicators | Fire / Fault / Power / Silence |
| Control Keys | Mute, Reset, Evacuate |
| Operating Temperature | –10 °C ~ +50 °C |
| Compliance | EN 54-2 Certified |
Applications
Perfect for multi-zone buildings where monitoring is required at several points:
- Office towers and commercial complexes
- Hotels and hospitals
- Factories and industrial facilities
- Educational institutions and shopping malls
- High-rise apartments and residential estates
Why Choose Safety Hub Ghana
Safety Hub Ghana is a leading supplier of Alfamax fire detection and alarm systems in Ghana.
We offer design, installation, and maintenance of EN-certified addressable fire alarm solutions — trusted by facility managers, contractors, and developers across Accra, Tema, and Kumasi.
Our genuine Alfamax systems deliver superior reliability, full technical support, and fast nationwide delivery.
