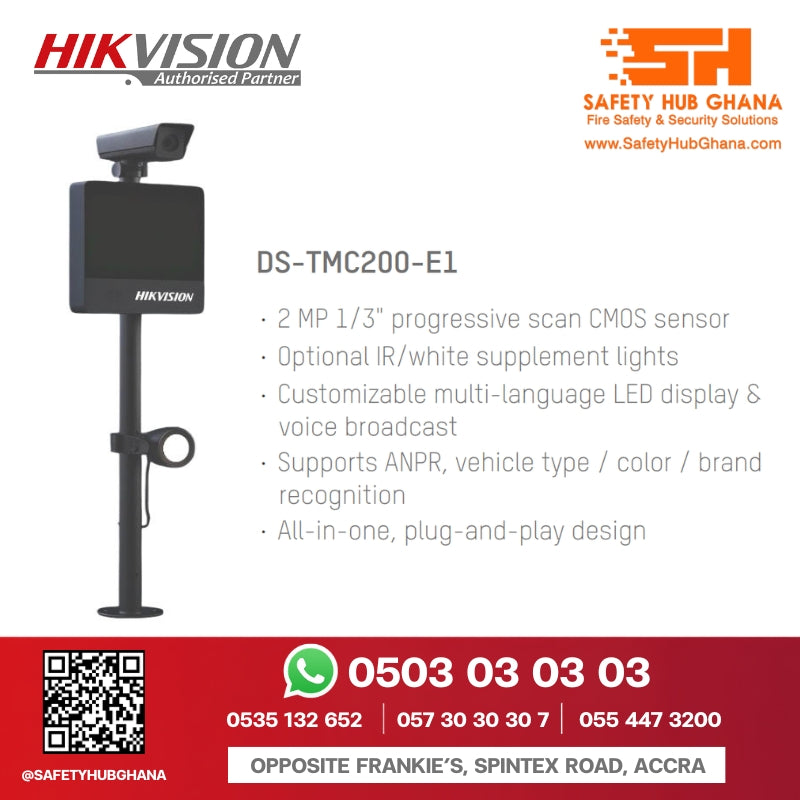

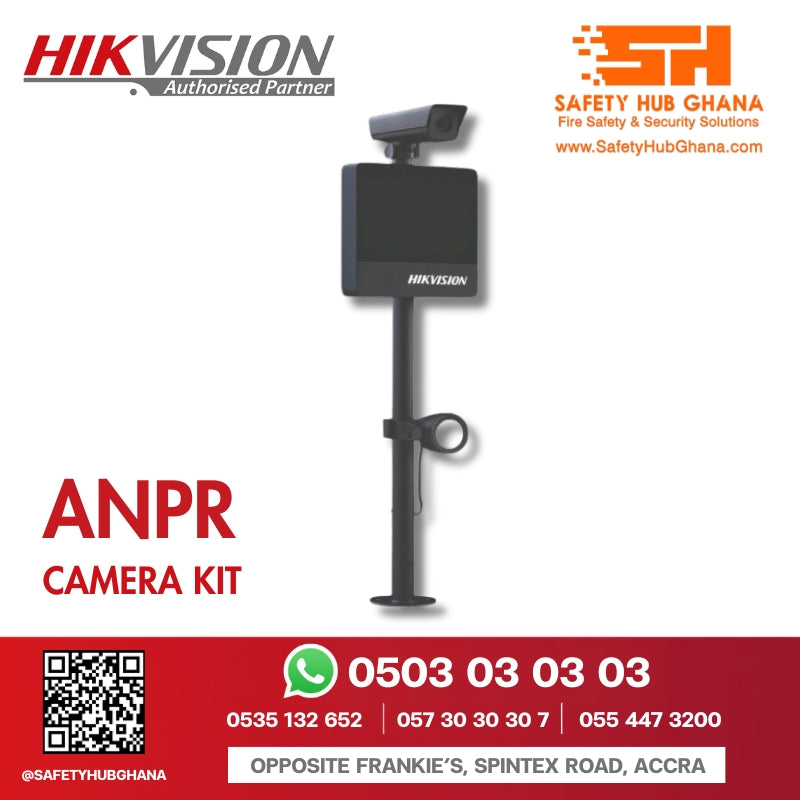

xHikvision DS-TMC200-E1 2MP Integrated ANPR Kit
Managing vehicle traffic manually at busy entrances is slow, prone to errors, and highly vulnerable to security gaps. The Hikvision DS-TMC200-E1 2MP ANPR Kit solves this by consolidating your entire vehicle entry setup into a single, automated, plug-and-play solution.
Instead of buying, mounting, and wiring separate cameras, displays, and lights, this kit combines an AI-driven ANPR (Automatic License Plate Recognition) camera, a bright LED notification screen, a warm-white supplement light, and a heavy-duty mounting pole into one integrated system.
Why Choose the DS-TMC200-E1 for Your Facility?
Exceptional Recognition Accuracy: Built-in deep learning algorithms achieve a license plate recognition accuracy rate of 98.5% or greater and a capture rate of 99% or greater under optimal lighting conditions.
Real-Time Visitor Feedback: The integrated P4 LED display screen dynamically outputs plate numbers, entry status, or custom welcome messages in red, green, or yellow.
Rich Vehicle Analytics: The camera doesn't just read numbers—it recognizes vehicle types (SUV, Sedan, Van, Truck, Motorcycle), detects 11 distinct vehicle colors, and identifies 84 different auto manufacturers.
Massive Local Storage capacity: Supports an internal allow-list and block-list database of up to 100,000 vehicles, allowing the system to grant or deny barrier access autonomously without constant server connectivity.
Day and Night Performance: Features a powerful 140 dB Wide Dynamic Range (WDR) to counter harsh Ghanaian sunlight and glare, alongside an integrated white/IR light to capture high-contrast plates in pitch darkness.
Key Technical Specifications
| Feature | Specification Details |
| Camera Sensor | 1/3" Progressive Scan CMOS (Max. Resolution: 1920 × 1200 @ 25fps) |
| Lens Type | 3.1 to 6 mm Motorized Vari-focal Lens (Software Auto-Focus) |
| LED Display | P4 Matrix (64 x 32 resolution), Red/Green/Yellow display colors |
| Trigger Modes | Video Detection, Loop/Coil Trigger, Radar, Mixed Traffic Mode |
| Smart Functions | LPR, Vehicle Color, Brand Recognition, Fake Plate Filtering |
| Audio & Voice | 1 Line Input, 1 Line Output + Built-in voice broadcast module |
| Physical Interface | 1 RJ45 10M/100M Ethernet, 2-ch Alarm Input, 1-ch Relay Output |
| Weather & Power | Operates from -20°C to 65°C; Power supply AC 100-240V |
How It Automates Your Gate Control
When integrated with an automated barrier gate, the DS-TMC200-E1 creates a hands-free operational flow:
Ideal Deployments in Ghana: Gated residential estates in Accra, multi-level corporate parking structures in Accra Central, logistics yards in Tema Port, and shopping mall parking management systems.
