Description

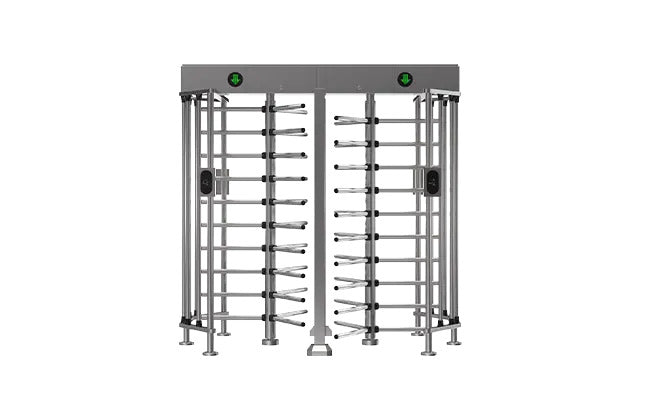

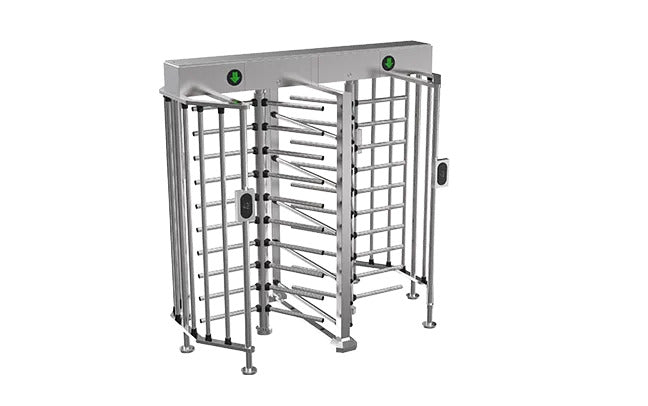

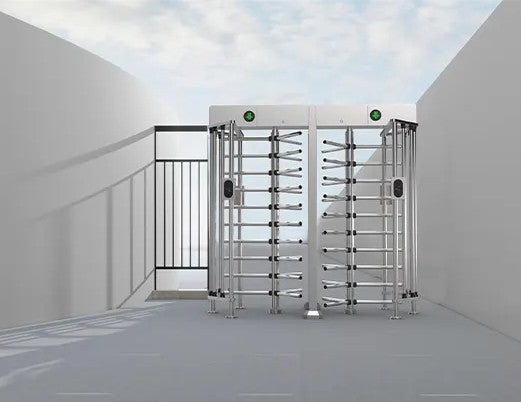

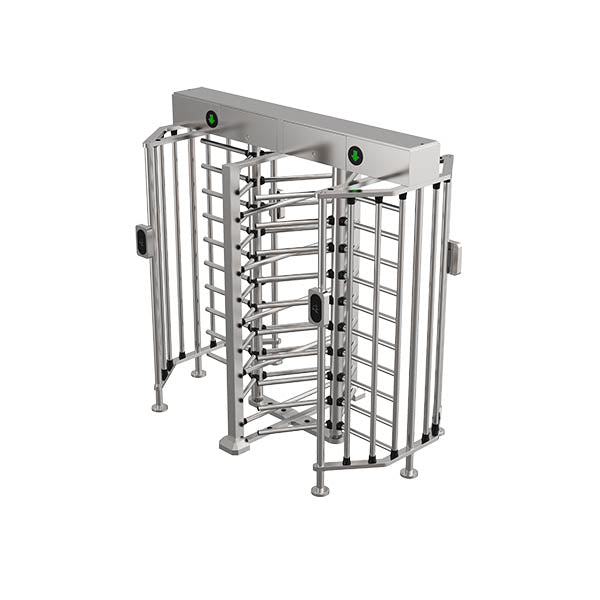

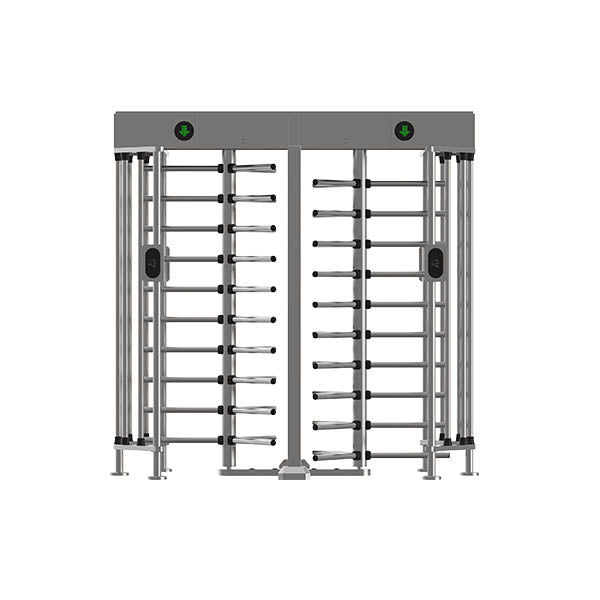

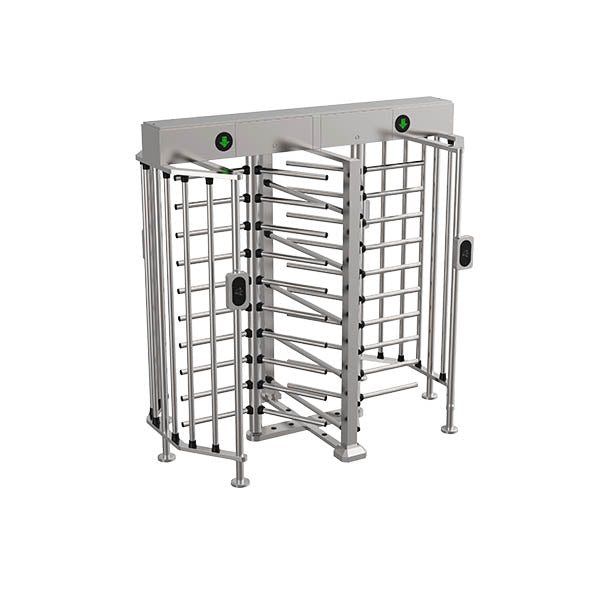

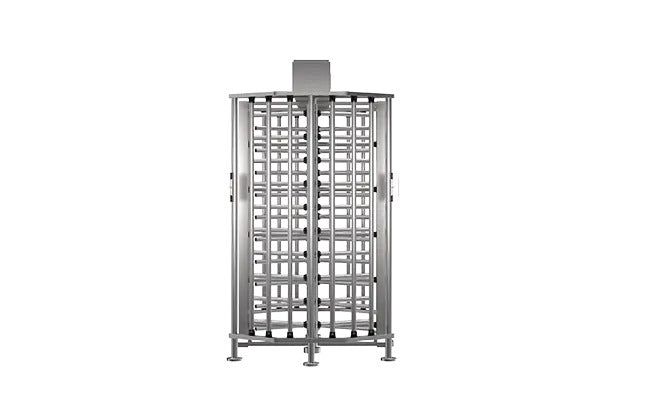

xA highly reliable, low-noise, and durable full-height double-lane turnstile gate designed for both temporary and permanent installations. Ideal for construction sites, events, stadiums, campuses, and perimeter control. Compatible with card systems, QR codes, face recognition, and more.
| Feature | Benefit & Use Case |
|---|---|
| Robust & Reliable Design | Built for long service life with smooth, low-noise operation — excellent for 24/7 use in harsh environments. |
| Fail-Safe Opening Under Power-Off | In case of power failure or emergencies, the turnstile doors automatically open to allow fire-fighting and safe evacuation. |
| Anti-Tailgating & Anti-Reverse | Prevents unauthorized entry or reverse passage — enhances security in high-traffic areas. |
| Memory / Non-Memory Card Modes | Configure it to “with memory” (record last user) or “without memory” (stateless) depending on your workflow. |
| Automatic Reset | If access is granted but no one passes within the preset time, the gate locks back automatically — avoids security loopholes. |
| Infrared Anti-Clamp Protection | Detects obstruction during motion or when open to prevent injury or damage. |
| Multi-Mode Authentication | Integrates with IC/ID cards, QR/barcode scanning, face recognition, etc. Expandable to future tech. |
| Open / Closed Operation Modes | Flexible: set it to normally open (free passage) or normally closed (secure mode). |
| One-Way / Two-Way Reading Modes | Control direction: allow entry-only, exit-only, or bi-directional access as needed. |
Technical Specifications
- Dimensions (L × W × H): 2200 × 1300 × 2230 mm
- Pass Width: 550 mm
- Power Consumption: 50 W (drive), 24 V / 150 W (power supply)
-
Material / Construction:
• Body: Stainless steel, thickness δ = 1.2 mm
• Fence rods: ф = 1.0 mm
• Transmission shaft: ф = 2.8 mm SUS304 - Sensor Type: Limit sensor
- Indicator Light: Dynamic LED indicator
- Drive Unit: Anti-burn solenoid
- Control Board & Interface: Dry contact & RS-485 communication
- Pass Rate: 35–50 persons per minute
-
Operating Conditions:
• Temperature range: –20 °C to +70 °C
• Humidity: ≤ 90% (non-condensing)
• Ingress Protection: IP4X -
Usage Environment: Suitable for both indoor and outdoor installations
Use Cases & Applications
- Stadiums, arenas, and event venues
- Educational institutions/campuses
- Factories & industrial sites
- Residential gated communities
- Government buildings, embassies, and ministries
- Secure facilities (data centres, labs, prisons, etc.)
Order Now / Request a Quote
Contact Safety Hub Ghana today to get a free consultation, technical drawings, or installation quote. Ensure your site in Ghana is safe, secure, and efficiently managed.
