xAdvanced Intelligent X-Ray Baggage Inspection for High-Security Facilities in Ghana

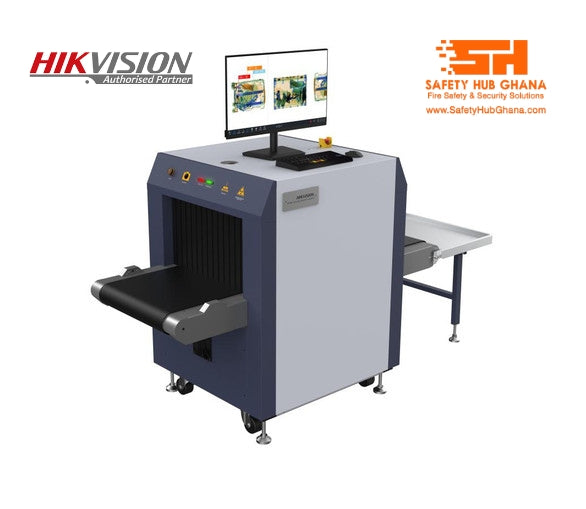

Securing commercial, industrial, and government entry points requires rapid, uncompromising threat detection. The Hikvision ISD-SG5030S-CVL Intelligent Single-view X-Ray Inspection System delivers high-precision screening engineered for today's complex security challenges. Designed to process small to medium hand baggage, parcels, satchels, and cargo items, this compact powerhouse provides non-intrusive inspection without slowing down daily foot traffic.
At the core of the ISD-SG5030S-CVL is Hikvision’s self-developed deep learning image recognition technology. By leveraging artificial intelligence, the system automatically identifies and highlights dangerous objects—including firearms, cold weapons, liquid explosives, and contraband—reducing the mental fatigue of operators and minimizing human error during high-density operations.
Key Capabilities &Technological Highlights
1. AI-Driven Deep Learning Threat Detection
Equipped with dynamic pattern-recognition software, the scanner automatically identifies restricted items in real time. When a potential threat passes through the tunnel, the system alerts operators on-screen with visual boundary framing, speeding up decision-making and preventing dangerous items from entering your premises.
2. Precision Dual-Energy Material Classification
The ISD-SG5030S-CVL utilizes dual-energy X-ray technology to differentiate between organic, inorganic, and mixed atomic compositions. By applying standard 3-color or advanced 6-color coding modes, operators can instantly distinguish between harmless items (like clothing or paper) and potential hazards (like organic explosives or metal weapons).
3. Deep Steel Penetration & Superior Image Clarity
Featuring a powerful 140 kV X-ray generator, the machine achieves a standard 30mm steel penetration depth (up to 32mm typical), ensuring high clarity through dense luggage, packed parcels, and thick leather containers. The included 21.5-inch Full HD display provides sharp image resolution, allowing security teams to zoom and inspect intricate inner components effortlessly.
4. Integrated Package & Multi-Angle Video Traceability
Unlike traditional inspection systems, the ISD-SG5030S-CVL integrates external cameras with internal X-ray image capture. Each scanned baggage image is synchronized with video footage and a high-resolution photo of the physical bag. This complete audit trail ensures quick incident review and complete operational accountability.
5. Safe, Efficient, and Environmentally Sound
Designed to meet international radiation safety standards, the external radiation leakage rate is strictly controlled to under 1 μSv/h guaranteeing full safety for operators and pedestrians nearby. Additionally, the inspection beam is completely safe for high-speed ISO 1600 commercial film.
Target Applications across Ghana
The space-saving profile and high throughput of the ISD-SG5030S-CVL make it a perfect fit for diverse sectors operating in Ghana:
- Embassies & Government Institutions: Protect high-profile diplomatic and public buildings against unauthorized threats.
- Financial & Corporate Headquarters: Ensure comprehensive entry security for bank towers, corporate centers, and data centers.
- Hotels, Malls & Convention Venues: Provide seamless security checks for guests and patrons in 5-star hotels, retail centers, and event spaces.
- Industrial & Critical Infrastructure: Secure access control across mining sites, oil & gas installations, power plants, and telecom infrastructure.
- Logistics, Ports & Airports: Facilitate rapid parcel screening for courier providers, air freight stations, and postal distribution hubs.
- Correctional Facilities & Educational Hubs: Block contraband, weapons, and illicit materials from entering prisons, university campuses, and research sites.
Technical Specification Table
| Technical Parameter | Specification Details |
| Model |
Hikvision ISD-SG5030S-CVL |
| Tunnel Dimensions |
500 mm (W) x 300 mm (H) |
| Overall Dimensions |
1483 mm (L) x 730 mm (W) x 1100 mm (H) |
| Conveyor Speed |
0.2 m/s to 0.3 m/s (One-click speed switching) |
| Max Conveyor Load |
100 kg (Distributed load) |
| Steel Penetration |
30 mm standard (32 mm typical) |
| Wire Resolution |
38 AWG standard (40 AWG typical) |
| X-Ray Generator Voltage |
140 kV (Adjustable) |
| Display Monitor |
21.5-inch Full HD LED Monitor (1920 x 1080) |
| Radiation Leakage |
<1.0 (Compliant with health & safety standards) |
| Film Safety |
Guaranteed safe for ISO 1600 film |
| Storage Capacity |
100,000+ images with local and network export |
Features Table
| Key Feature | Operational Advantage |
| AI Threat Recognition |
Reduces operator fatigue by automatically flagging guns, knives, and explosives. |
| Color Coding Discrimination |
Distinguishes organic vs. inorganic materials using 3-color or 6-color palettes. |
| Video Linkage System |
Ties physical bag video streams to specific X-ray scans for full audit tracking. |
| Adjustable Speed Controls |
Optimizes baggage flow between standard and high-density throughput periods. |
| Compact Physical Design |
Fits easily into narrow entryways, lobby checkpoints, and restricted corridors. |
Package Includes
1 x Hikvision ISD-SG5030S-CVL Single-View X-Ray Main Unit
1 x 21.5-inch High-Definition Operator Monitor
1 x Ergonomic Operator Console / Keyboard Interface
1 x Integrated Package Video Camera System
Entry & Exit Extension Roller Tables
System Power Cables & Interface Wire Assembly
User Manual, Software Media & Factory Test Certificate
Safety Hub Ghana Service Pack: Professional On-Site Installation, Calibration & Operator Training
