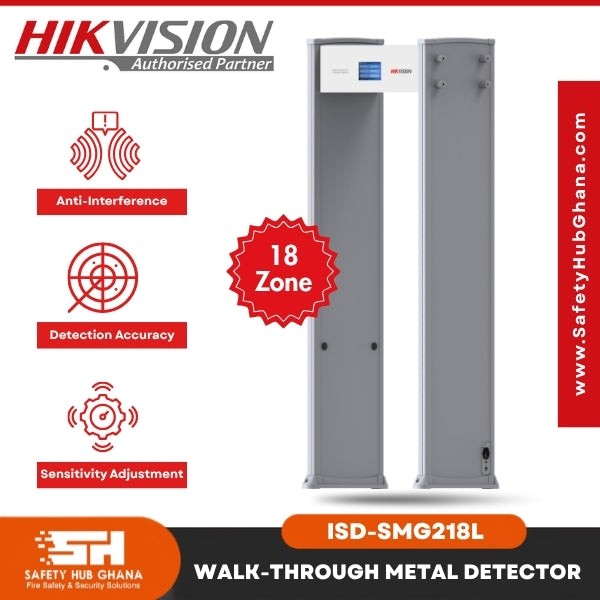

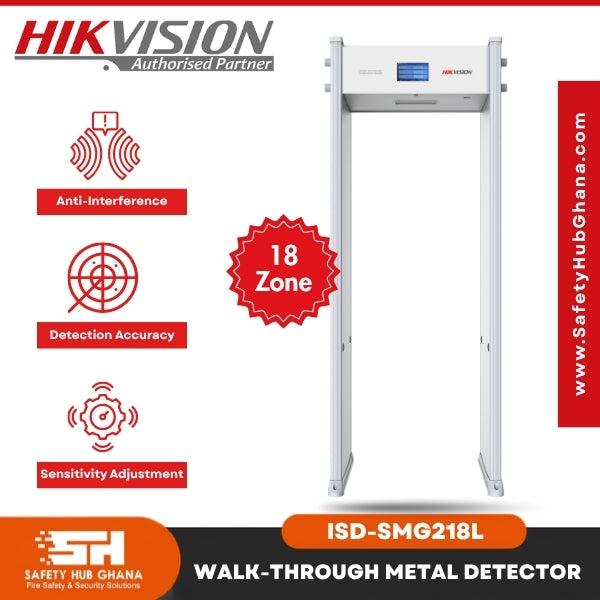

Hikvision Walk-Through Metal Detector

Advanced Walk-Through Security Screening with Integrated Thermal Measurement for Facilities in Ghana

Ensuring non-negotiable entry control for commercial, industrial, and government facilities requires precision threat detection combined with efficient throughput. The Hikvision ISD-SMG218L Walk-Through Metal Detector provides a dual-layer security solution engineered specifically for high-footfall access control checkpoints. By combining an 18-zone archway metal detector with thermal temperature screening capabilities, the ISD-SMG218L allows security operators to detect concealed metallic hazards and screen health parameters in a single, seamless pass.

Designed for high-traffic environments across Accra and the wider region of Ghana, this security gate balances high sensitivity with smart signal processing to prevent bottlenecks at critical access points.

Key Capabilities & Technological Highlights

1. 18 Independent Overlapping Detection Zones

The ISD-SMG218L utilizes 18 independent overlapping detection zones that span the full height of the archway. Column indicators on both sides of the door frame illuminate LED lights at the precise height and position of detected metallic objects--whether concealed at ankle level, waist height, or overhead. This allows security personnel to locate weapons, contraband, or unauthorized items rapidly without requiring exhaustive manual pat-downs.

2. Non-Contact Thermal Temperature Screening

Built with an integrated thermal camera/sensor module, the unit conducts rapid, non-contact surface temperature measurement as individuals step through the frame. The system displays real-time temperature readings on a clear LCD screen and immediately triggers visual and audible alarms if an abnormal temperature threshold is detected, providing an added layer of screening for public health and safety protocols.

3. Adjustable Sensitivity & Intelligent False-Alarm Filtering

With up to 255 adjustable sensitivity levels per zone, operators can fine-tune the detector to ignore benign personal items--such as belt buckles, keys, coins, and shoe shanks--while maintaining strict detection for knives, firearms, and hazardous metallic components. Advanced electromagnetic signal processing ensures exceptional immunity to external environmental interference.

4. Real-Time Passenger & Alarm Analytics

An integrated LCD control display tracks operational metrics live, including the total number of passing individuals, valid metallic threat alarms, and abnormal temperature counts. These statistics provide facility administrators with actionable data regarding visitor density, peak traffic hours, and security compliance.

5. Modular, Durable Construction

Built for high-durability deployment, the ISD-SMG218L features a modular, flame-retardant chassis designed for quick assembly and stable operation. Modular components simplify long-term serviceability and maintenance, ensuring consistent operation in demanding commercial and industrial environments.

Target Applications Across Ghana

• Embassies & Government Institutions: Prevent firearms, weapons, and dangerous items from entering high-profile diplomatic buildings, courtrooms, and public offices.

• 5-Star Hotels, Shopping Malls & Convention Centers: Maintain guest safety with discrete, efficient archway screening that preserves welcoming customer service standards.

• Financial & Corporate Headquarters: Safeguard bank towers, data centers, and corporate office complexes with automated access audit controls.

• Mining Sites, Oil & Gas, and Free Zone Companies: Block loss prevention risks, internal theft, and unauthorized metallic equipment movement across industrial security perimeters.

• Airports, Ports, & Logistics Hubs: Speed up screening workflows for employees, air cargo handlers, and transit passengers.

• Prisons, Universities & Healthcare Facilities: Restrict contraband, blades, and illegal items from entering correctional complexes, educational campuses, and medical centers.

Technical Specification Table

• Model: Hikvision ISD-SMG218L
• Detection Zones: 18 Independent Overlapping Zones
• Sensitivity Levels: 0 to 255 (Adjustable per zone)
• Display: High-Brightness LCD Screen
• Temperature Measurement Range: 30°C to 45°C
• Temperature Accuracy: ±0.5°C
• Throughput Speed: Up to 30 to 60 persons/minute
• Alarm Modes: Audible Alarm & Visual Multi-Zone LED Indicators
• Pass/Alarm Counting: Real-time passenger pass counter and alarm counter
• Operating Voltage: AC 100 V ~ 240 V, 50/60 Hz
• Power Consumption: < 25 W
• Working Temperature: -20°C to 55°C
• Outer Dimensions: 2200 mm (H) x 850 mm (W) x 480 mm (D)
• Inner Tunnel Dimensions: 2000 mm (H) x 710 mm (W) x 480 mm (D)

 Features

• 18 Zone LED Pinpointing: Directs guards immediately to the concealed object's location on the body, reducing manual search time.
• Integrated Temperature Module: Combines physical threat detection with rapid health screening in one footprint.
• Multi-Frequency Interference Immunity: Minimizes signal cross-talk when multiple metal detectors or electronic systems operate nearby.
• Modular Door Structure: Lightweight, flame-retardant construction enables quick on-site installation and maintenance.
• Password Protection: Restricts configuration changes and sensitivity adjustments to authorized security administrators.

Package Includes

• 1 x Hikvision ISD-SMG218L Walk-Through Metal Detector Main Frame (Left/Right Panel Sets)

• 1 x Main Control Beam & Integrated LCD Console

• 1 x Non-Contact Thermal Temperature Screening Sensor Module

• 1 x Power Supply Cable Unit

• 1 x Hardware Mounting & Assembly Bolt Kit

• 1 x User Manual & Factory Calibration Certificate

• Safety Hub Ghana Service Pack: Professional On-Site Installation, Sensitivity Calibration & Operator Training
